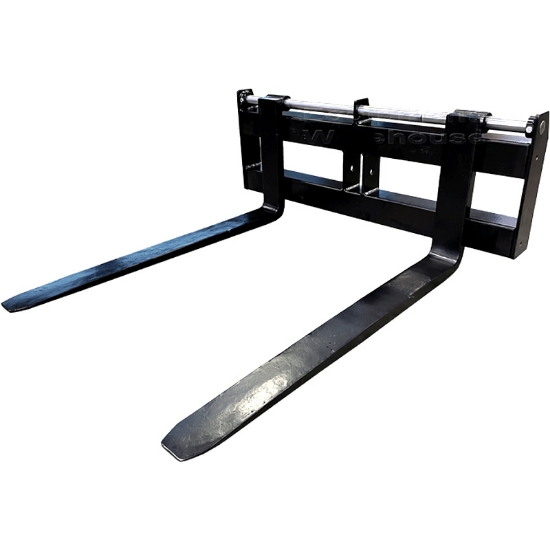

Floating Weldable Fork Carriage - Skid Steer Hitch

This Hinged Carriage is a heavy duty Class 2 fork carriage designed to suit a tractor, skid steer or track loaders and comes fitted with pin mounted fork tines.

Part No: EW-FWFC-SSH

Shipping Charges *

$1,100.00 excl GST

Floating Weldable Fork Carriage - Skid Steer Hitch

This Hinged Carriage is a heavy duty Class 2 fork carriage designed to suit a tractor, skid steer or track loaders and comes fitted with pin mounted fork tines.

Features:

Fitted with 125 x 32mm fork tines with a length of 1070mm
Pin mounted fork tines prevent hook-up when reversing
Various hitch options available on request
Q-Fit carriage designed for easy fitment of optional accessories
Enamel paint finish

Specifications:

Working Load Limit (WLL) : 2000kg
Load Centre : 500mm
Carriage Width : 1200mm
Max. Fork Tine Spread : 1150mm
Unit Weight : 127kg (excl. hitch)
